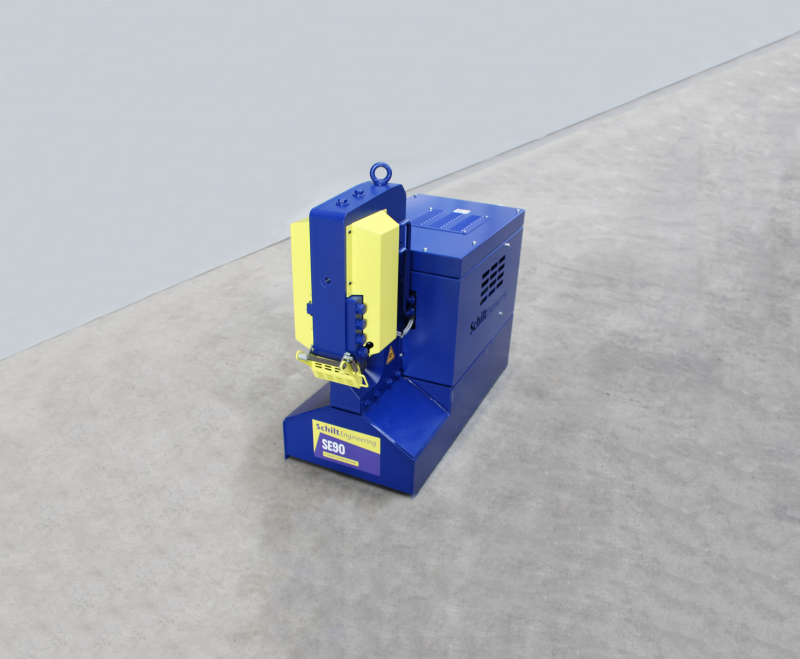

Vertical cutting machine for bars up to Ø32mm at 850N/mm²
Blade width 90 mm
Hydraulic cutting up to 16 strokes per minute
Operated with 2-handed safety control

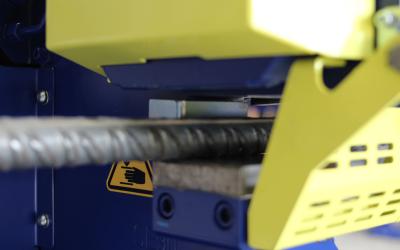

Shielded cutting area
Low noise level hydraulic pump

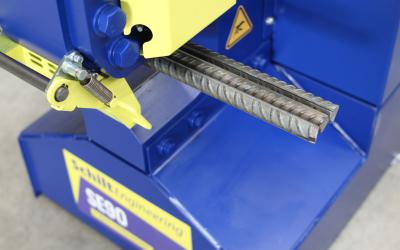

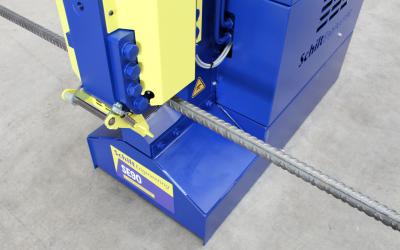

Hydraulic clamp to hold bars while cutting
Also available in a horizontal version
SE90-V cutting capacity at 850N/mm²
| Bar diameter | Ø6 | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. number of bars per cut | 12 | 10 | 8 | 7 | 6 | 5 | 3 | 2 | 1 | 1 |
