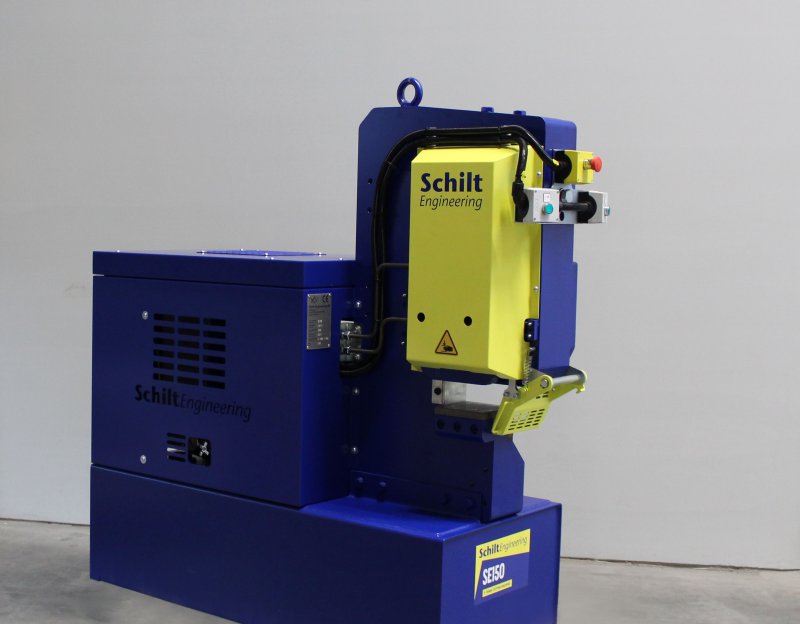

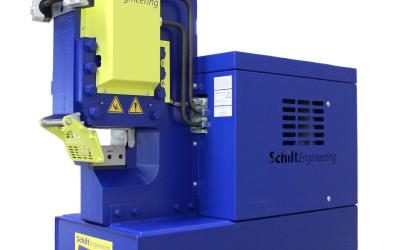

Vertical cutting machine for bars up to Ø50mm at 850N/mm²

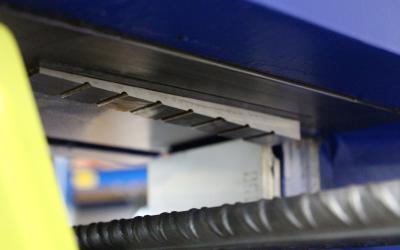

Blade width 150 mm
Hydraulic cutting up to 14 strokes per minute
Operated with 2-handed safety control
Shielded cutting area
Low noise level hydraulic pump
Hydraulic clamp to hold bars while cutting
The SE150 is also available in a horizontal version
Available with cutting blade on the left or right side
SE150-V Cutting capacity at 850N/mm²
|
Bar diameter
|
Ø6
|
Ø8
|
Ø10
|
Ø12
|
Ø14
|
Ø16
|
Ø20
|
Ø25
|
Ø28
|
Ø32
|
Ø40
|
Ø50
|
|
Max. number of bars per cut
|
18
|
15
|
13
|
11
|
9
|
8
|
6
|
4
|
3
|
2
|
1
|
1
|
