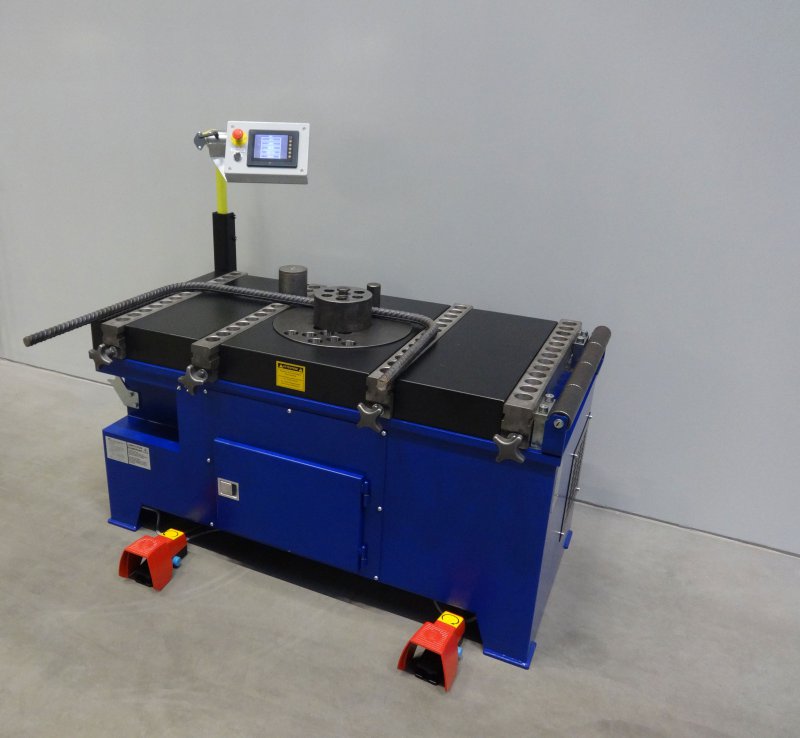

SBC60 Rebar bending machine
מק"ט: 2cd97d125a1e
Bending machine for bars up to Ø40mm at 850N/mm²
תיאור מוצר
Program control (PLC) with touchscreen, bending programs, corrections & counter
Foot pedals for operation in both bending directions
Radius function for use with optional radius bending set
Maintenance-free gear, 2 bending speeds
Equipped with hardened counter rails for perfect fitting of pins
Complete with tools: bending pins, centre pin and bending rollers in diameter (mm): Ø60, Ø80, Ø100, Ø125, Ø160 and Ø200
Flat counter holder for stirrups
Internal storage cabinet for bending tools
Optional bending wing for use with large bending rolls
Further tools and different roll diameters are available on request (available from stock)
Technical specifications
| Ø60 | Ø50 | Ø40 | Ø35 | Ø32 | Ø28 | Ø25 | Ø20 | Ø16 | Ø12 | Ø10 | Ø8 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 450 N/mm² | 1 | 1 | 2 | 3 | 3 | 3 | 4 | 5 | 6 | 8 | 9 | 11 |
| 650 N/mm² | 1 | 2 | 3 | 3 | 3 | 4 | 5 | 6 | 8 | 9 | 11 | |
| 850 N/mm² | 1 | 2 | 2 | 3 | 3 | 5 | 6 | 8 | 9 | 11 |
