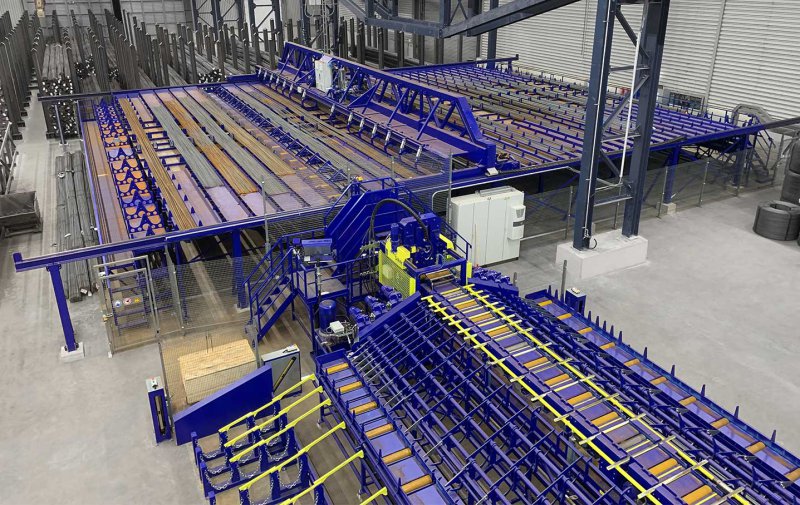

Multibar 300/500 fully-automatic shearline with ABL Module

Shearline with unique integrated ABL module for automatic selecting, counting, and loading with new bars Available with roller conveyors and cutting machine in 300 mm or 500 mm width High cutting performance even with smaller diameters due to high roller conveyor speed and high cutting speed Dimensioning with fixed measuring stops every 500 mm and mobile cutting machine for quick and dimensionally stable cutting of small and large series Optimum utilization of the internal storage pockets on both sides next to the measuring table through automatic positioning and ejection of the cut material Intelligent PLC control with touch panel, easy-to-use user interface, cutting optimization, online support, network connection or barcode scanner Unsurpassed build quality and robustness, minimal maintenance and low downtime Modular structure, adaptable to customer needs Possible integration of a double bending line

Bar diameter	Ø8	Ø10	Ø12	Ø16	Ø20	Ø25	Ø28	Ø32	Ø40	Ø50
Multibar 300 max. bars per cycle	30	28	22	16	14	10	9	8	6	2
Multibar 500 max. bars per cycle	55	46	37	28	22	18	16	14	8	4
