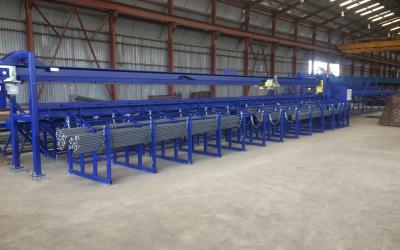

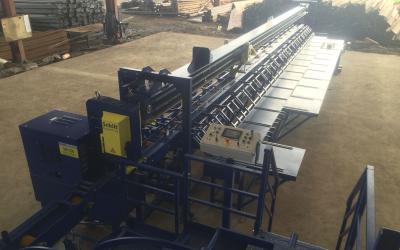

Flexbar 150/300-DAE automatic rebar shearline

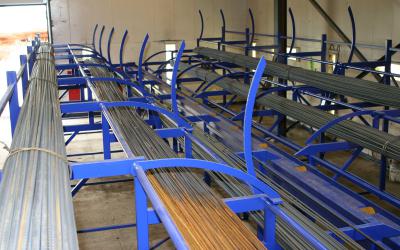

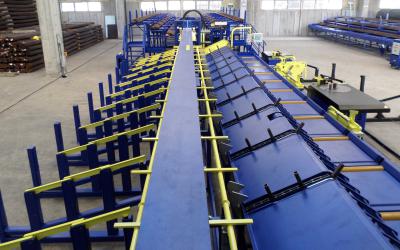

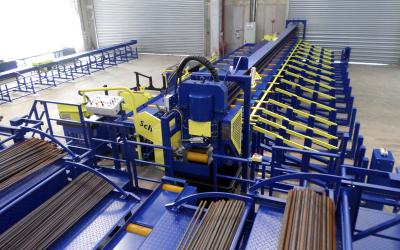

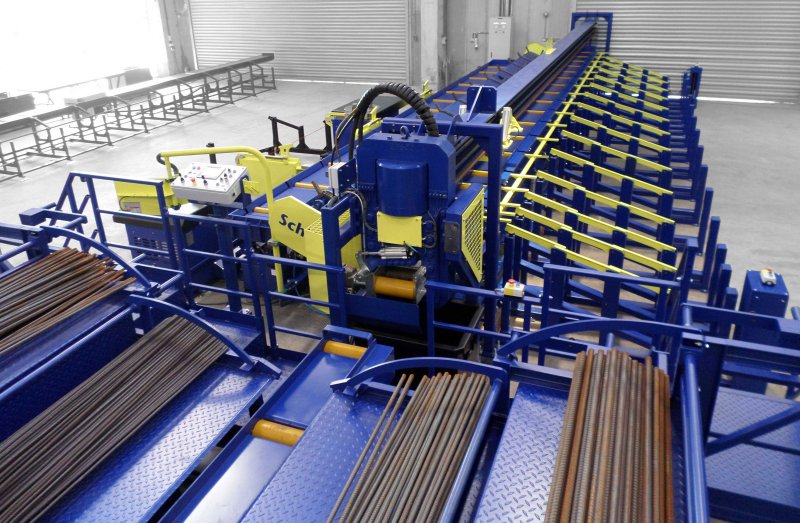

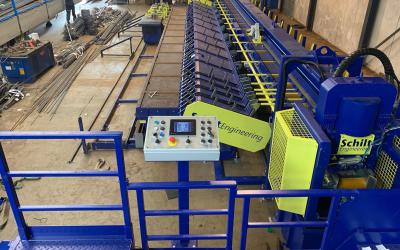

Active storage rack for rebar with 1 or up to 6 levels Electrically driven entry conveyor with coated rollers Hydraulic rebar cutting machine with 150mm or 300mm blade width Automatic length stop (cantilevered construction) for precise cutting length adjustment PLC control with touch panel, possibility to set up to 5 different cutting lengths in one cycle Automatic ejection after cut, at pre-selected position, for maximum utilization of collection boxes Ejecting to both sides offers better logistics and the possibility of integrating bending table, double bender or extra collecting boxes Easy operation, low maintenance Capacity approx. 10 - 20 tons per shift (150mm blade) or approx. 15 - 30 tons per shift (300mm blade)

Bar diameter	Ø8	Ø10	Ø12	Ø14	Ø16	Ø20	Ø25	Ø28	Ø32	Ø40	Ø50
Flexbar-DAE 150 max. number of bars per cut	15	13	11	9	8	6	4	2	2	1	1
Flexbar-DAE 300 max. number of bars per cut	24	22	20	17	15	13	8	7	6	5	2
