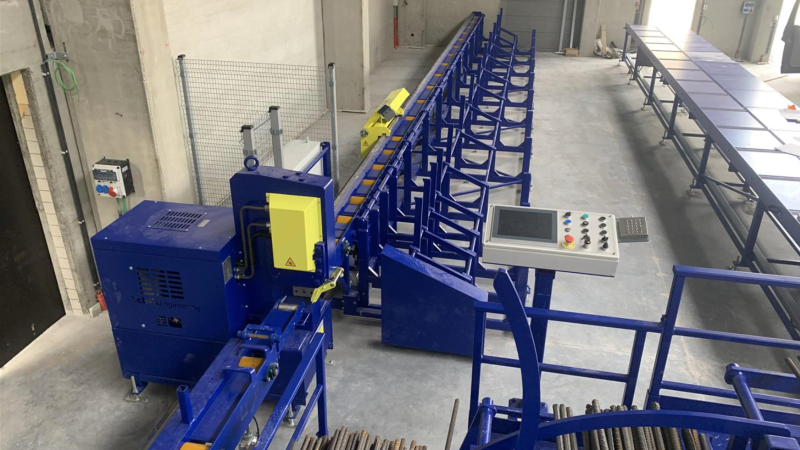

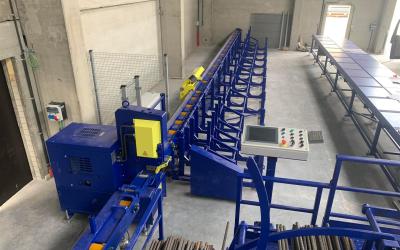

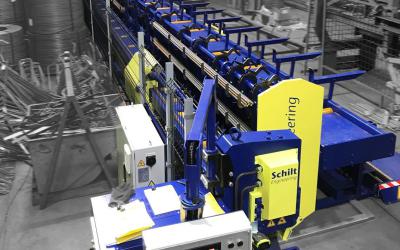

Flexbar 150/300-AE automatic rebar shearline
מק"ט: 33ef39801fd1
Rebar shearline with automated length stop and one-sided automatic ejecting, processing of bars from Ø8mm up to Ø50mm
מאפיינים טכניים
field_674d511bd4305
סרטון מוצר
תיאור מוצר

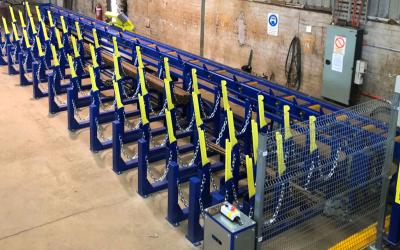

Active storage rack for rebar with 1 or up to 6 levels
Electrically driven entry conveyor with coated rollers

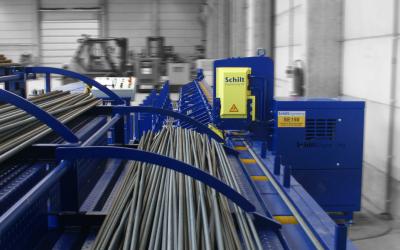

Hydraulic rebar cutting machine with 150mm or 300mm blade width
Automatic length stop for precise length adjustment

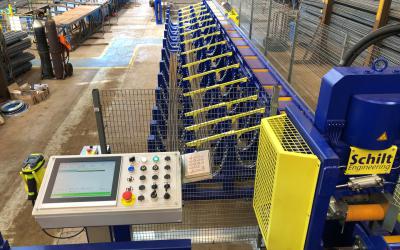

PLC control with touch panel, possibility to set up to 5 different cutting lengths in one cycle

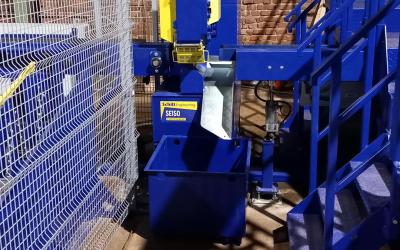

Automatic ejection after cut, at pre-selected position, for maximum utilization of collection boxes
Possibility to integrate bending table/rebar double bender
Easy operation, low maintenance
Capacity approx. 5 - 15 tons per shift (150mm blade) or approx. 10 - 25 tons per shift (300mm blade)
Technical specifications
| Bar diameter | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 | Ø40 | Ø50 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Flexbar-AE 150 max. number of bars per cut | 15 | 13 | 11 | 9 | 8 | 6 | 4 | 2 | 2 | 1 | 1 |
| Flexbar-AE 300 max. number of bars per cut | 30 | 28 | 20 | 18 | 16 | 13 | 10 | 7 | 6 | 5 | 2 |
