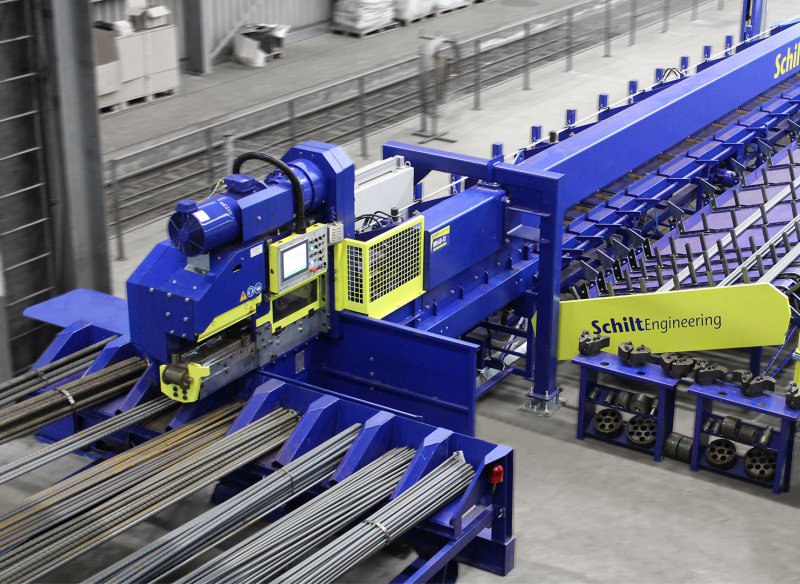

BPL40-ST stationary shearline with pull-in system
מק"ט: 8d12c73c6d98
Length stopper free stationary rebar shearline with moveable rebar stock, for bars from Ø8mm up to Ø40mm
תיאור מוצר

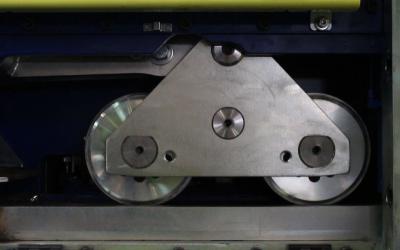

Servo-driven feed head with feed wheels and split pressure wheels for high production and clean bar handling with minimal wear
Perfect length tolerance even after many hours of operation

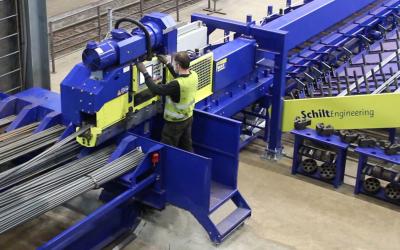

Electrically powered cutting head, fast and powerful, with minimal energy consumption

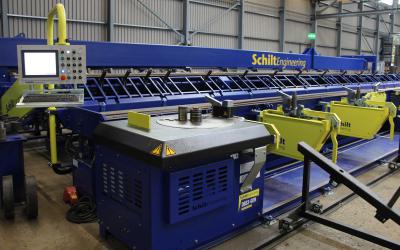

Intelligent PLC control with touch panel, user-friendly user interface, cut optimization, online support, network connection or barcode scanner
Many possible deposit positions for cut material, therefore continuous production possible, for both smaller and larger batches
Connecting a double bender is possible by using a chain conveyor
Technical specifications
| Bar diameter | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 | Ø40 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. number of bars per cycle | 14 | 12 | 10 | 8 | 7 | 6 | 4 | 4 | 3 | 2 |
