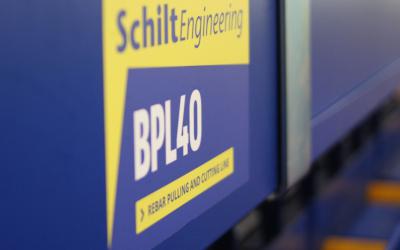

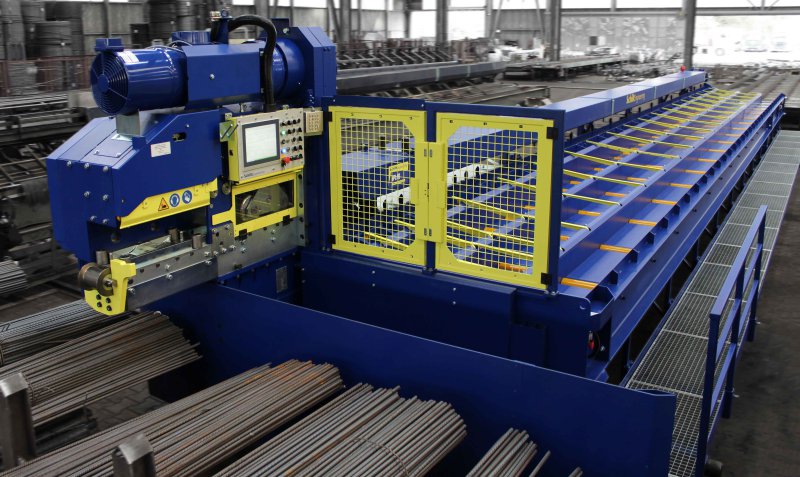

BPL40 Mobile shearline with pull-in system
מק"ט: 72d71608ba4c
Length stopper free mobile rebar shearline for processing bars from Ø8mm up to Ø40mm
מאפיינים טכניים
field_674d511bd4305
סרטון מוצר
תיאור מוצר
Servo-driven feed head with feed wheels and split pressure wheels for high production and clean bar handling with minimal wear
Perfect length tolerance even after many hours of operation

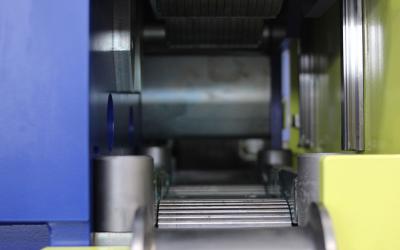

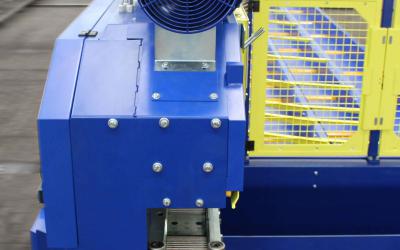

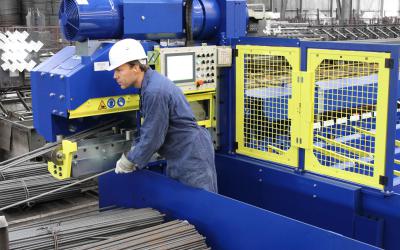

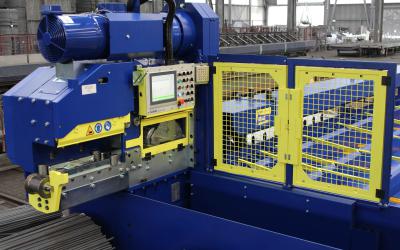

Electrically powered cutting head, fast and powerful, with minimal energy consumption

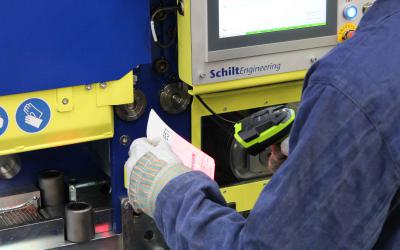

Intelligent PLC control with touch panel, user-friendly user interface, cut optimization, online support, network connection or barcode scanner

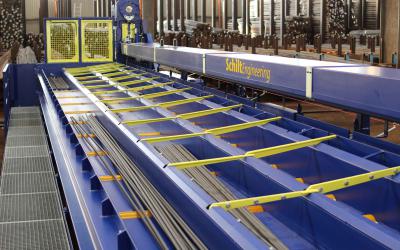

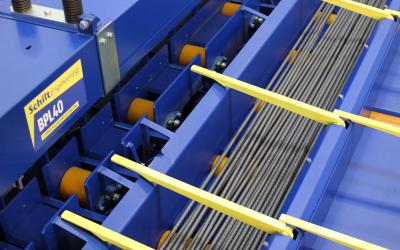

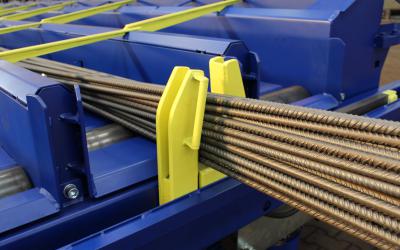

Robust roller conveyors with frequency-controlled drives for collecting and further transporting of cut bars
Technical specifications
| Bar diameter | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 | Ø40 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. number of bars per cycle | 14 | 12 | 10 | 8 | 7 | 6 | 4 | 4 | 3 | 2 |
